FTTH Drop Cable Duct type

The sheathed optical cable is mostly single-core or double-core structure, and can also be made into a four-core structure. The cross section is in a figure-8 shape. The reinforcement is located in the center of the two circles. Metal or non-metallic structure can be used. . The optical fiber in the leather cable adopts G.657 small bending radius optical fiber, which can be laid with a bending radius of 20mm. The dish-shaped drop cable for access network (for indoor wiring) is to place the optical communication unit (optical fiber) in the center, place two parallel non-metallic reinforcements (FRP) or metal reinforcements on both sides, and finally, extrude black or color poly It is sheathed with vinyl chloride (PVC) or low smoke halogen free material (LSZH, low smoke, halogen free, flame retardant).

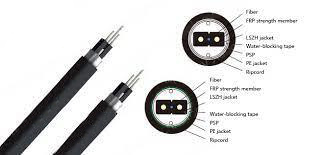

duct type ftth drop cable
Product features of duct type ftth drop cable:

  • ·Special bend-resistant optical fiber provides greater bandwidth and enhances network transmission performance;
  • ·Two parallel FRP or metal reinforcements make the optical cable have good compression performance and protect the optical fiber;
  • The optical cable has simple structure, light weight and strong practicability;
  • Unique groove design, easy to peel off, easy to connect, simplify installation and maintenance;
  • ·Low-smoke halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath, environmentally friendly.
  • ·It can be matched with a variety of field connectors and can be terminated on site.

Application of duct type ftth drop cable:

  1. For indoor wiring;
  2. It is used for optical connection of optical communication equipment room, optical distribution frame and optical connection of optical instruments and equipment;
  3. For pigtails and jumpers;

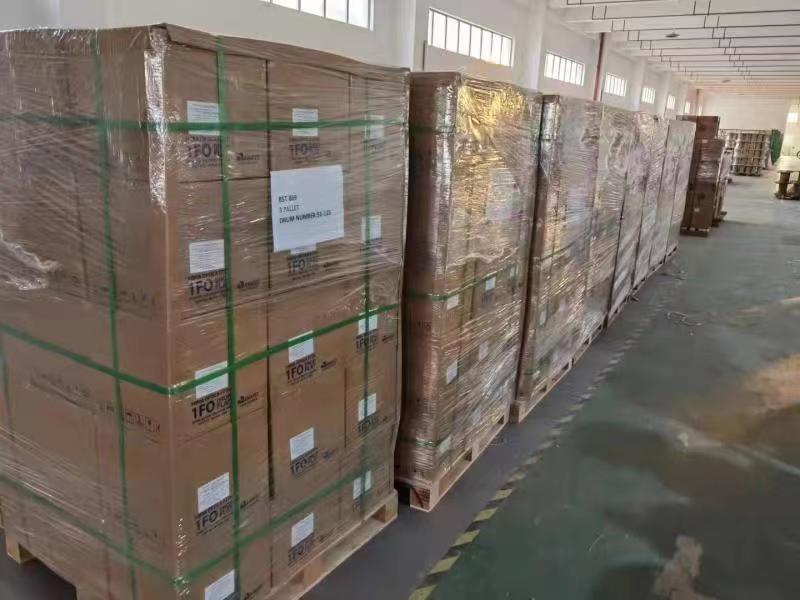

duct type ftth drop cable2
