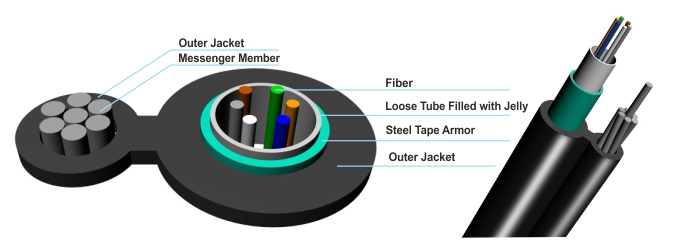

Figure 8 fiber optic cable, As a common optical cable for outdoor communication, Mainly includes: GYTC8S/GYTC8A, GYXTC8S, GYXTC8Y, etc.
Application:
Figure 8 cable is suitable for self-supporting aerial, pipeline or direct buried installation environments
Color-coded fibers and binders allow for quick and easy identification during installation
Tear cord design allows easy removal of outer sheath
Compatible with existing figure 8 hardware
Flexible buffer tube makes splicing and routing easy
The oil-filled loose tube provides good protection for the optical fiber
With anti-ultraviolet and moisture-proof properties, it can be installed outdoors
Performance:
The optical fiber has low transmission loss and low dispersion.
Reasonable design and precise control of the excess length of the optical fiber in the loose tube and the cabling method make the optical cable have excellent mechanical properties and environmental performance.
The optical cable has a compact structure and adopts the SZ layer twist structure to ensure that the optical fiber is not under stress in harsh environments.
The outside of the reinforcement and the inside of the cable core are filled with water-blocking cable paste, which ensures the moisture-proof and water-blocking effect of the optical cable.
·The steel belt longitudinally wraps the cable core to make the optical cable more moisture-proof and bulletproof.
·The steel strand is used as a self-supporting member to meet the extremely high tensile strength.
Features:
Choose high-quality optical fiber to ensure that the optical cable has excellent transmission performance.
Precisely control the excess length of the optical fiber to ensure that the optical cable has excellent mechanical and temperature characteristics.
Strict process and raw material control ensures that the optical cable can work stably for more than 30 years.
The full-section water-blocking structure ensures good water-blocking and moisture-proof performance.
The loose tube is filled with special ointment to provide key protection for the optical fiber.
Longitudinal clad steel tape strengthens the lateral pressure resistance of the optical cable.
The outer sheath has good anti-ultraviolet radiation performance
The self-supporting structure has high tensile strength, which is convenient for overhead laying and reduces installation cost.
Performance indicators:
Number of cores: 2～144
Outer diameter: 13.0 (13.4) ~ 18.0 (18.5) mm
Weight: 270(305)kg～450(490)kg
Scope of application: suitable for long-distance communication and inter-office communication
Laying method: self-supporting overhead
Working temperature (℃): -40～70℃
