2 Cores FTTH Bow Type Drop Cable GJYXFCH Self Supporting Flame Retardant



GJYXFCH is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.


  • Place Of Origin: Guangdong, China
  • Product Name: FTTH Drop Fiber Optic Cable
  • Acket Material: HDPE/AT Sheath
  • Cores Number: 1-12cores
  • Fiber Type: G652D; 657A1/A2
  • Product Detail

    Packaging & Shipping

    Product Tags

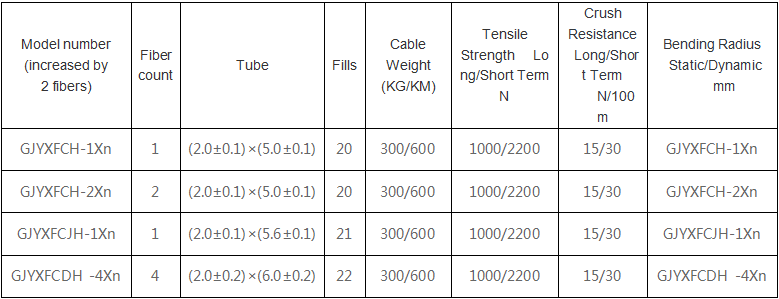

    Cable Cross -Section:

    GJXFHGJXH

    Application:

    ●  Internal FTTH applications horizontal and riser.
    ●  Clipping to surfaces including skirting boards.
    ●  Short distance external use with black LSZH jacket.

    Characteristics

    · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
    · Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
    · Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
    · Simple structure, light weight and high practicability;
    · Novel flute design, easily strip and splice, simplify the installation and maintenance;
    · Low smoke, zero halogen and flame retardant sheath.

    Packing:

    Our packaging box can not only achieve 7 layers but also can bear the weight of two adults,The picture below is sent by our customer.

    ftth drop fiber cable

    FTTH Drop Cable Packaging

    FTTH solution

    FTTH solution


  • Previous:
  • Next:

  • 1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

    Sheath Mark:

    The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

    Port:

    Shanghai/Guangzhou/Shenzhen

    Lead Time:
    Quantity(KM) 1-300 ≥300
    Est.Time(Days) 15 To be begotiated!
    Note:

    The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

    drop-cable-package-5

    The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
