GJYXTCH FTTH Drop Cable

DESCRIPTION:

The cable consists of optical communication unit, strength member, self-supporting unit and outer sheath;
Optical communication unit includes fibers and PBT Loose Tube Jelly Filled;
This cable adopts PBT structure, which can better ensure data transmission. It can hold 12 optical fibers.;
Strength member can be metallic or Non-metallic according to customers’ demand.

Place Of Origin: Guangdong, China

Product Name: FTTH Drop Fiber Optic Cable

Acket Material: PVC/LSZH

Cores Number: 1-12cores

Fiber Type: G652D, G655,G657A,G657B

Messenger Size: 0.5, 1.0, 1.2mm Optional

Strength Member: Steel Wire, FRP, KFRP

Get a Free Quotation Whatsapp

Product Detail

Packaging & Shipping

Product Tags

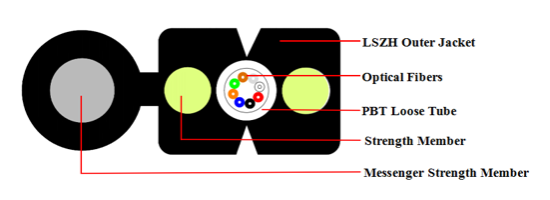

Cable Cross -Section:

DESCRIPTION:

The cable consists of optical communication unit, strength member, self-supporting unit and outer sheath;
Optical communication unit includes fibers and PBT Loose Tube Jelly Filled;
This cable adopts PBT structure, which can better ensure data transmission. It can hold 12 optical fibers.;
Strength member can be metallic or Non-metallic according to customers’ demand.

TECHNICAL DATA:

Parameters	Specifications
Fiber Core	2	4	6	8	12
Cable Dimension (mm)	(3.0±0.1) × (6.2±0.1)	(3.0±0.1) × (6.2±0.1)	(3.2±0.1) × (6.3±0.1)	(3.5±0.1) × (6.5±0.1)	(3.5±0.1) × (6.5±0.1)
Cable Weight (kg/km)	26	26	26	27	28
Self-supporting Messenger	1.0mm /1.2mm/1.5mm (Steel Wire or FRP)
Parallel Messenger	0.4mm/ 0.45mm/ 0.5mm (Steel Wire or FRP)
Tensile Strength (N) Long term	300
Tensile Strength (N) Short term	600
Crush(N/100mm) Long term	1000 N/100mm
Crush(N/100mm) Short term	2200 N/100mm
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20℃)@1310nm	≤0.45 dB/km
Attenuation(+20℃)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20℃~+60℃
Installation Temperature	-5℃~+50℃
Out sheath/Jacket	LSZH

FTTH solution

Previous: AAC–All Aluminum Conductor

Next: ADSS Cable Clamps Anchoring Clamp Tension Clamps

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port：

Shanghai/Guangzhou/Shenzhen

Lead Time：

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
