1-12 Cores FTTH Drop Cable GJYFJCH Kevlar Yarn Tight Buffer UV Resistant

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastic (FRP) are placed at two sides. A steel wire as additional

strength member is also applied. Then the cable is completed with block or color LSZH sheath. It has 1-12 fibers and 900um tight buffer fiber.

Consequently, GJYFJCH Fiber Optic Cable has a metallic steel wire or Kevlar yarn member which supports the cable. Also, GJYFJCH Fiber Optic

Cable is a UV and flame resistant LSZH.

Get a Free Quotation Whatsapp

Product Detail

Packaging & Shipping

Product Tags

Cable Cross -Section:

Optical Characteristics:

Good UV and flame resistant.
Figure 8, tight-buffer design
Compact, soft, flexible, easy to install
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Single steel wire or massagers as the additional strength member ensure good performance of tensile strength.
Simple structure, light weight, and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogens, and flame retardant sheath
Subcable flame-retardant jacket;
Excellent stripping performance of tight buffer fiber;
Suited to SM fiber and MM fiber (9μm, 50μm, and 62.5μm).
The type of this fiber with single mode or multimode with a loose tube which is made of high modulus plastic
There is used an aramid yarn for filling. The center used a steel wire locates as a metallic
Strength member .for some cable, a steel wire sometimes sheathed with polyethylene .the tubes (and filers) is stranded around the strengt
member into a compact and circular cable core.double side’s chromium for PSP with PE as sheath .by single or double wire for installation, also with PE for outer sheath

Optical Characteristics:

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Technique Parameters:

Fiber Count	Norminal Diameter	Norminal Weight	Allowable Tensile Load		Allowable Crush Resistance
	(mm)	(kg/km)	(N)		(N/100mm)
			Short Term	Long Term	Short Term	Long Term
2-12	6.0*2.8	27	600	300	1000	500

Packing

Our packaging box can not only achieve 7 layers but also can bear the weight of two adults，The picture below is sent by our customer.

FTTH solution:

Previous: Outdoor FTTH Self-supporting Bow-type Drop Cable With 7 Stranded Steel Wire

Next: Butterfly Outdoor FTTH Drop Cable GJYXCH GJXH GJYXFCH

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port：

Shanghai/Guangzhou/Shenzhen

Lead Time：

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

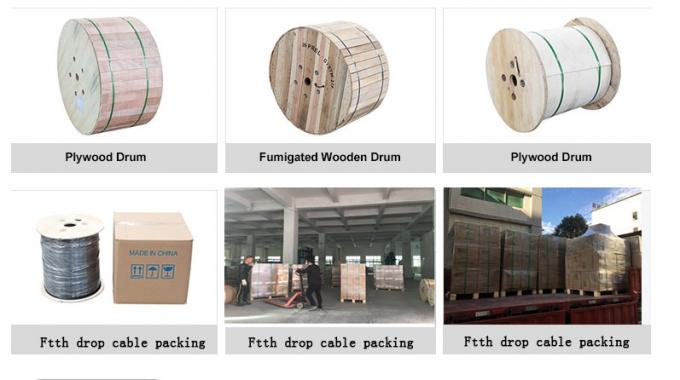

self-supporting fiber optic cable packaging

The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
