Cable Cross -Section:
Features:
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing key protection for fibres
• Combination of physical and chemical anti-rodent methods
• Flat FRP armor providing the physical anti-rodent performance
• Anti-rodent sheath providing the chemical anti-rodent performance, which effectively delays the diffusion of anti-rodent additives to protect working environment and construction safety
• All-dielectric design, applicable to lightning-prone areas
• Applicable to aerial and duct installations with anti-rodent and anti-lightning requirements
Technical Characteristics:
| Type GYFTY83 | Units | Max. fibre countper tube | Diameter(mm) | Cable weight(kg/km) | Tensile strengthLong/short term (N) | CrushLong/short term（N/100mm） | Bending radiusDynamic/static (mm) |
|---|---|---|---|---|---|---|---|
| 2-72Xn | 6 | 12 | 14.0 | 190 | 1500/4500 | 1000/3000 | 15D/25D |
Note:
1. Xn refers to fibre type. For details, see naming rules for optical cables of GL.
2. For color arrangement of fibres and loose tubes, see the color sequence.
3. D is cable diameter.
Environmental Characteristics:
• Transport/storage temperature: -40℃ to +70℃
Delivery Length:
• Standard length: 2,000m; other lengths are also available.

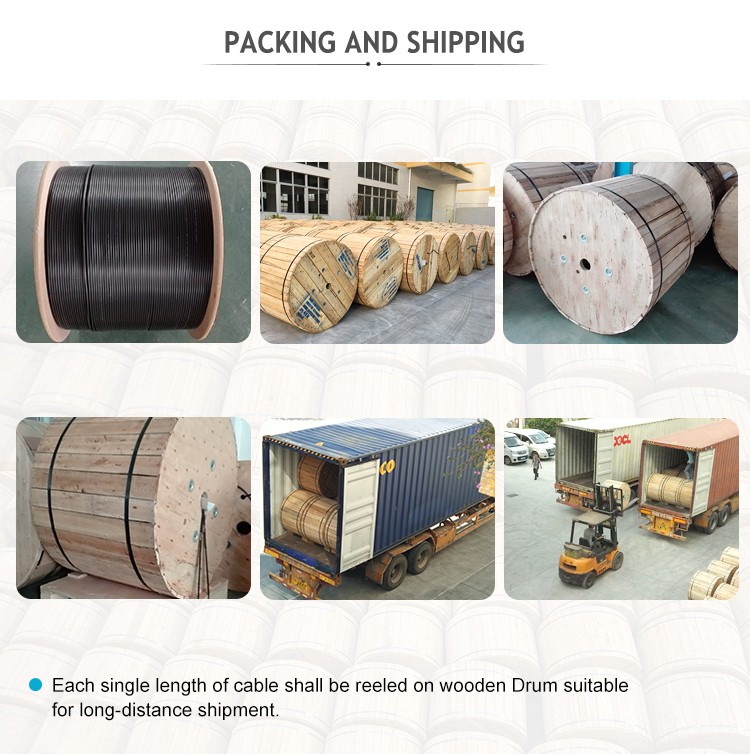

Packaging Details：
1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.
Sheath Mark:
The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
Port：
Shanghai/Guangzhou/Shenzhen
Lead Time：
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
Note:
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
