LC to LC Fiber Patch Cable Single Mode Duplex – 9/125um OS1 LSZH

Hanlan high-quality LC to LC Fiber Patch Cable Single mode 9/125 OS1 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial, 10GBASE-L (1310 nm), 10GBASE-E (1550 nm), 1000BASE-LX (1300 nm) and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.

This fiber OS1 LC LC Fiber Patch Cord conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.

This SM fiber has an yellow color jacket with a 3.00mm diameter. OS1 cables have a 0.25 dB/km attenuation at 1550 nm and 0.35 dB/km at 1310 nm.

This LC to LC Single mode Duplex OS1 fiber patch cords operate at -20ºC to +70ºC and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.

OS1 patch cords allow for connections between patching panels and network and server equipment. OS1 9/125 patch cords are commonly used in passive applications (GPON, FTTX and LANs) – LC duplex connectors are joined with a plastic clip, easy to remove in case you need to separate the connectors.

Singlemode OS1 PureOptics Patch Cables

Singlemode OS1 9/125 Fiber Patch Cable with Future-Proof Speed and a Strong Connectivity. This cable provides exceptional transmission performance and low signal losses.
It has easy to identify white, blue and black boots with yellow (A, B) Plastic rings markers and also feature a Removable dust caps for a reliable fiber and a great connectivity.



Featuring:

Fiber Patch cable applications, SFP and backplane applications.

Zipcord Fiber Patch Cords also can be used for desktop connections.

Jacketed fiber is enclosed, with a bundle of flexible fibrous polymer strength members.

Our Standard Ferrules are made of zirconia ceramic, which offers the highest performance of all ferrule material types.

Each OS1 Singlemode Fiber Patch Cable is individually and rigorously tested and certified to be within accurate optical insertion loss.

Single mode Fiber Optics Patch Cable allow for a 1 Gb Ethernet transmission distance of 10,000 meters at a 1310nm wavelength, or a 10 Gigabit Ethernet transmission distance of 5,000 meters at 1310nm and 30,000 meters at 1550nm.

OS1 fiber optic cables are available in a variety of optical fiber connectors including, SC, LC, ST, FC and MT-RJ

Specifications:

  • Wavelengths: 1310 and 1550nm
  • Color Code: Yellow
  • Bend Radius: Minimum / 5cm
  • Cable Jacket: 3.0mm LSZH
  • Operating Temperature: -4° to 158° F (-20° to +70° C)
  • Fiber Core: OS1 9/125
  • Jacket: Standard Zip Cord Duplex
  • Length in Meters: 3
  • Length in Feets: 9.84252
  • Termination: Connector A (LC) / Connector B (LC)
  • Polarity: A(Tx) to B(Rx)
  • Insertion Loss: ≤0.3dB
  • Return Loss: ≥50dB
  • Polish: UPC to UPC

360截图164803068879117

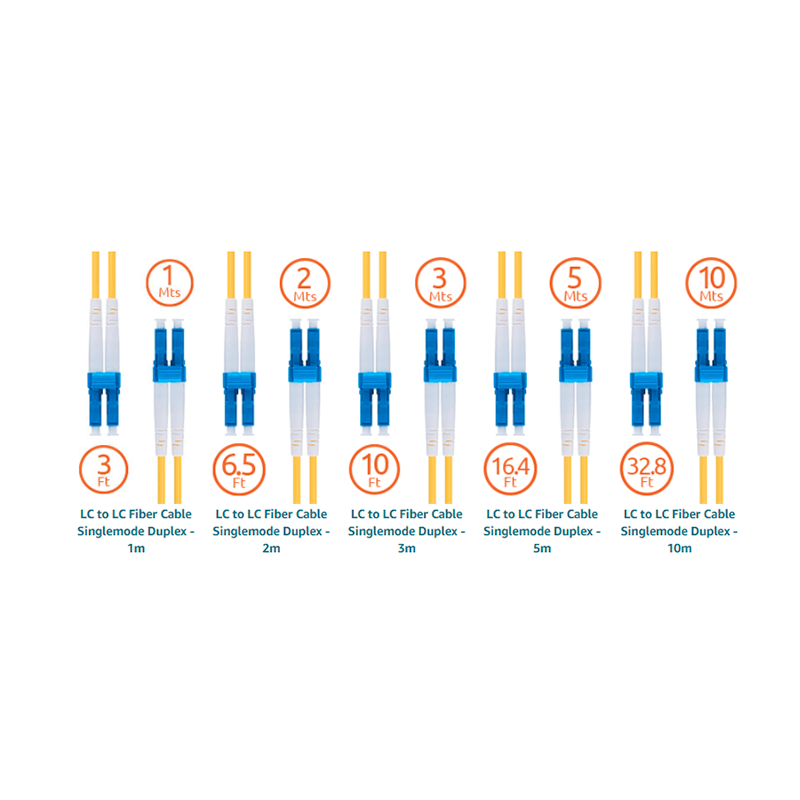

Size 1m (3ft) 2m (6.5ft) 3m (10ft) 5m (16.4ft) 10m (32.8ft)
Connector (A) (B) LC to LC LC to LC LC to LC LC to LC LC to LC
Fiber Core Singlemode (9/125) Singlemode (9/125) Singlemode (9/125) Singlemode (9/125) Singlemode (9/125)
Jacket Compliance LSZH LSZH LSZH LSZH LSZH
Fiber Type G.652D G.652D G.652D G.652D G.652D
Color Code Yellow Yellow Yellow Yellow Yellow

LC to LC Fiber Patch Cable Single Mode Duple.jpg
