SC UPC Simplex OM3 Multimode PVC (OFNR) 0.9mm Fiber Optic Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.


Product Detail

Product Tags

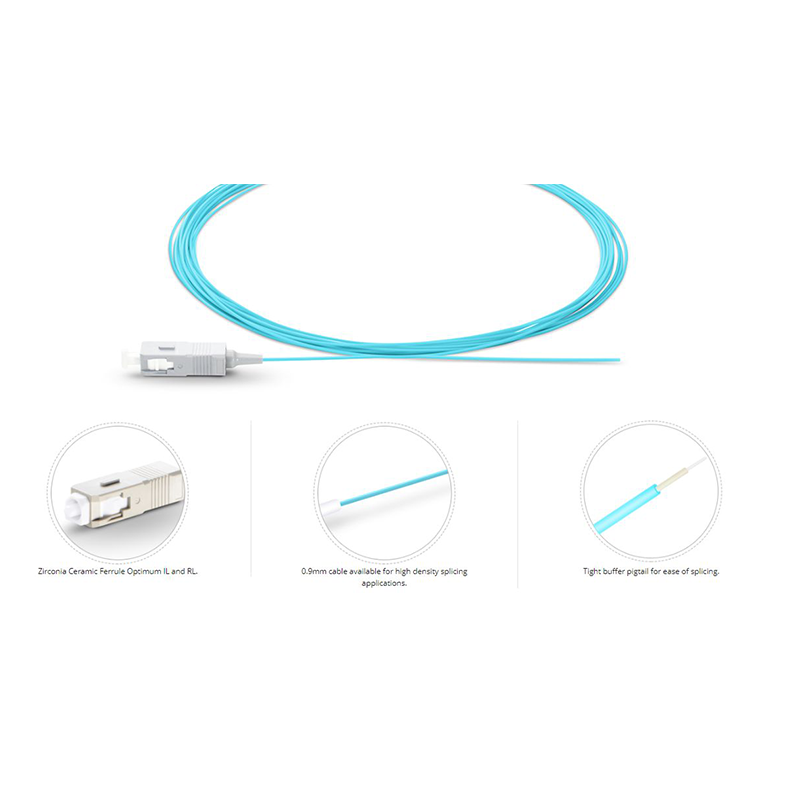

Simplex SC/UPC 50/125 Multimode Fiber Optic Pigtail,0.9 mm PVC Outer Jacket



Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Product Specification

Connector A SC Connector B Unterminated
Fiber Mode 50/125 μm Fiber Count Simplex
Fiber Grade Bend Insensitive Minimum Bend Radius 7.5 mm
Polish Type UPC Cable Diameter 0.9 mm
Cable Jacket PVC Jacket Color Aqua
Wavelength 850 nm/1300 nm Durability 500 Times
Insertion Loss ≤0.3 dB Interchangeability ≤0.2 dB
Return Loss ≥20 dB Vibration ≤0.2 dB
Operating Temperature -40~75°C Storage Temperature -45~85°C

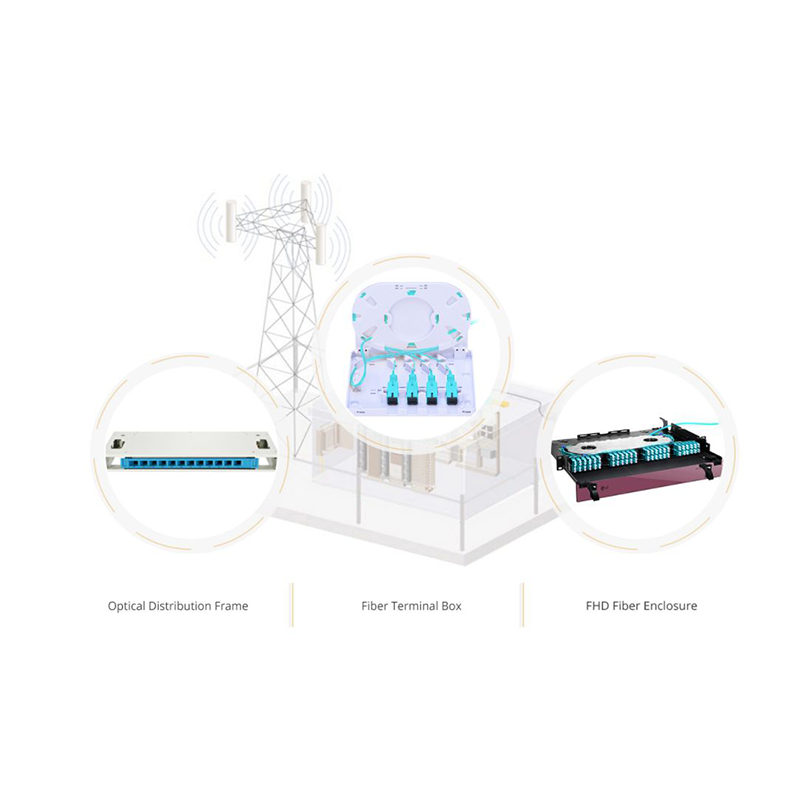

A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.

1m (3ft) LC UPC Simplex OM3 Multimode PVC (O.jpg

Fiber Optic Pigtail – Ideal for Splicing

It is utilized to achieve accurate mounting on precision alignment of fiber optical components.
