Simplex SC/UPC 9/125 Single Mode Fiber Optic Pigtail, 0.9 mm PVC Outer Jacket
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Product Specification
| Connector A | SC | Connector B | Unterminated |
| Fiber Mode | 9/125 μm | Fiber Count | Simplex |
| Fiber Grade | G.652.D | Minimum Bend Radius | 30 mm |
| Polish Type | UPC | Cable Diameter | 0.9 mm |
| Cable Jacket | PVC | Jacket Color | Yellow |
| Wavelength | 1310 nm/1550 nm | Durability | 500 Times |
| Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB | Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |

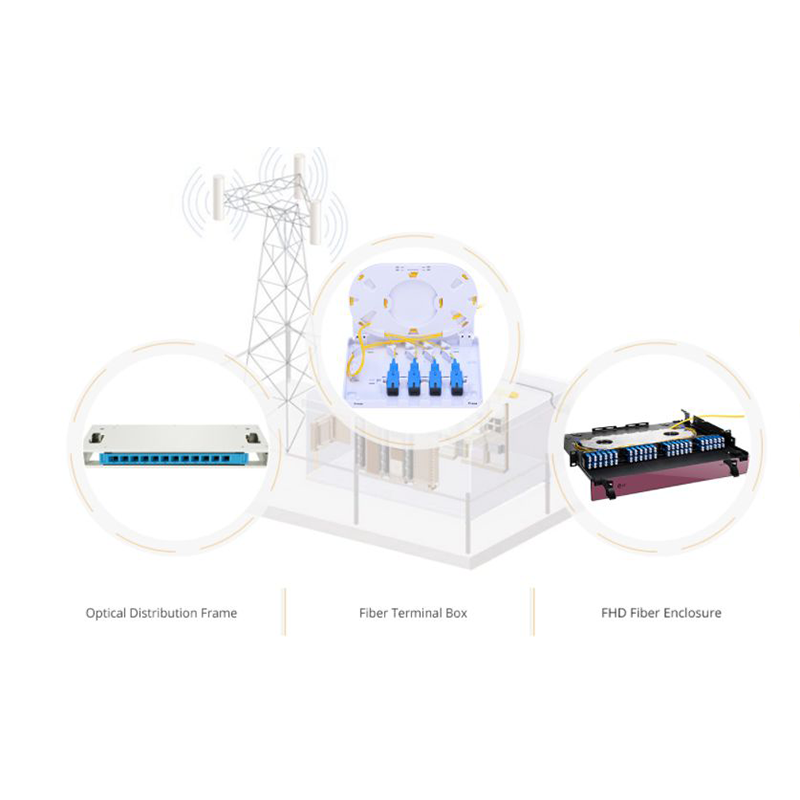

A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.
Fiber Optic Pigtail – Ideal for Splicing
It is utilized to achieve accurate mounting on precision alignment of fiber optical components.
|
Professional Test Equipment-Our test program including: end-face inspection,3D interferometer test, single mode IL and RL testing, multimode IL and RL testing |
 |
 |
Rigorous Test Process-Every cable will be cleaned to maintain end face free from contamination, avoiding affecting products’ performance |
How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper
Tips:
• It is recommended to heat the pigtail appropriately before you strip the 0.9mm buffer.
• Only a short length (1-2cm) of the pigtail is suggested to be stripped in one action.
Two Important Methods for Fiber Optic Pigtail Splicing
Fiber optic pigtail assemblies are utilised in terminating fiber optic cables via fusion or mechanical splicing.
Quality Certification
FOCC has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
