OPGW Typical Design of Central AL-covered Stainless Steel Tube



OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines. The central AL-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.AL-covered Stainless Steel Tube design increases the cross section of AL,to reach a better fault current and lightning resistance performance.Apply to the transmission line which requires small diameter and large fault current.


Product Detail

Packaging & Shipping

Product Tags

Cable Cross -Section:

OPGW Typical Designs of Central AL-covered Stainless Steel TubeOPGW Typical Design of Central AL-covered Stainless Steel Tube

Applications:Aerial, Overhead, Outdoor

Main Features:

1. High quality IEC607948 IEEE1138 standards for designing, testing, and producing with grade A materials available to ensure long-term reliability.

2. Engineering support supervising and providing its own line of accessories hardware.

3. Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lightning.

4. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing a high-pressure line over 110kv.

5. Apply to the transformation of old lines.

Technical Parameter:

Typical Design for Single Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-80(82.3;46.8) 24 11.9 504 82.3 46.8
OPGW-70(54.0;8.4) 24 11 432 70.1 33.9
OPGW-80(84.6;46.7) 48 12.1 514 84.6 46.7

Typical Design for Double Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-143(87.9;176.9) 36 15.9 617 87.9 176.9

Standard:

ITU-TG.652 Characteristics of a single mode optical fiber.
ITU-TG.655 Characteristics of a non-zero dispersion -shifted single mode fibers optical.
EIA/TIA598 B Col code of fiber optic cables.
IEC 60794-4-10 Aerial optical cables along electrical power lines-family specification for OPGW.
IEC 60794-1-2 Optical fiber cables -part test procedures.
IEEE1138-2009 IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.
IEC 61232 Aluminum -Clad steel wire for electrical purposes.
IEC60104 Aluminum magnesium silicon alloy wire for overhead line conductors.
IEC 6108 Round wire concentric lay overhead electrical stranded conductors.

Note:
1.Only a part of Overhead Optical Ground Wire are listed in the table. Cables with other specifications can be inquired.
2.Cables can be supplied with a range of single mode or multimode fibers.
3.Specially designed Cable structure is available on request.
4.Cables can be supplied with dry core or semi dry core

One-stop Accessories Shop

opgw hardware

We are OPGW Cable Manufacturer,Factory Price Supply 2-144 core Overhead Optical Ground Wire
Want to know Overhead Optical Ground Wire price,please send email to sales@ksdfibercable.com


  • Previous:
  • Next:

  • Packaging Details:

    1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

    Sheath Mark:

    The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

    Port:

    Shanghai/Guangzhou/Shenzhen

    Lead Time:

    Quantity(KM) 1-300 ≥300
    Est.Time(Days) 15 To be begotiated!
    Note: The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

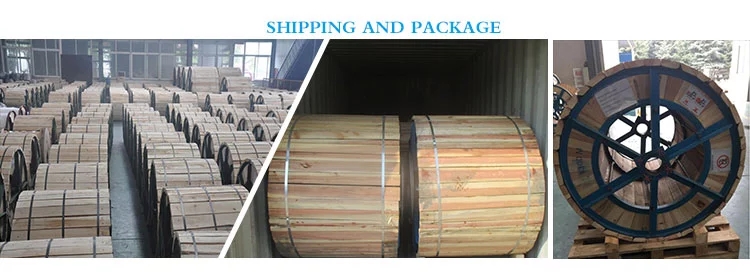

    OPGW-PACKING-AND-SHIPPING

    The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
